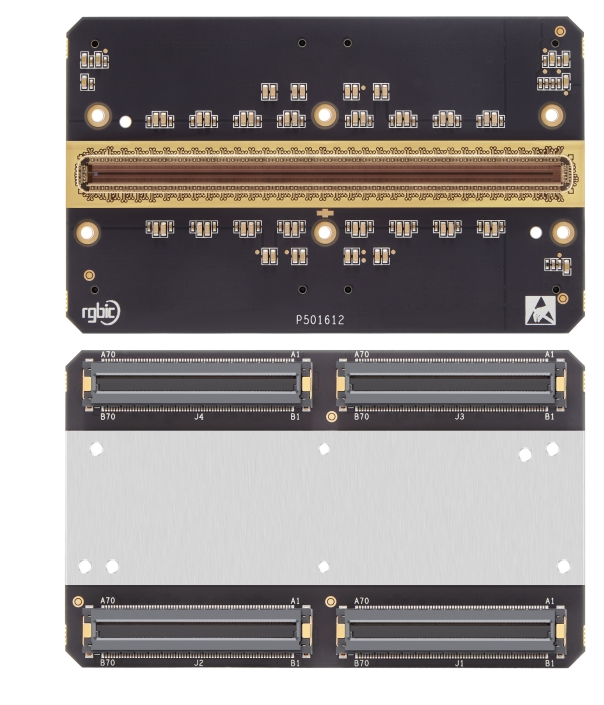

CMOS image sensor P501612
P501612 is a 16K resolution 12-line CMOS image sensor with 5.0um global shutter pixel with true CDS. P501612 support on-chip Time Delay Integration (TDI). Monochrome version can be provided upon request, which can support up to 12-line mono pixel.
High sensitivity, low noise and low PLS which make the sensor suitable for PCB inspection, wafer inspection and other high end machine vision applications. P501612 supports 80KHz line rate at full resolution.
Specifications
·Resolution：16384 x 12
·Pixel size：5.0um
·Shutter type：Global
·Max Frame rate：80KHz @12-line
·Full well capacity：9ke-
·Temporal noise：5.5e
·FPN：3.2e-
·PRNU：1.5%
·Dynamic range：64dB
·Output interface：800MHz sub-LVDS x 128/96/64
·Power consumption：7.0W
·Chroma：BGR x 4
·Package：4 x 140 pins FR4
Applications
PCB Inspection/ Print Inspection/ Wafer Inspection/ Flat Panel Display Inspection
